AIB

Fixed Bottom Ash processing plant - Switzerland

Customer:

Project:

Location:

AIB - Amt für Industrielle Betriebe (Deponie Elbisgraben)

Fixed Bottom Ash processing plant

Arisdorf - Switzerland

trs aib deponie elbisgraben 10

Awarded

TRS BV has been awarded this tender inquiry on basis of technical and practical simplicity for a competitive price. The project was erected and taken over in approximately 6 months.

Goal

The goal of the installation is to process stored bottom ash directly at the landfill site. In Switzerland it is not allowed to use bottom ash in road construction. It must be landfilled after metal recovery. The amount of metal that can be left in the processed bottom ash is < 1%.

Result

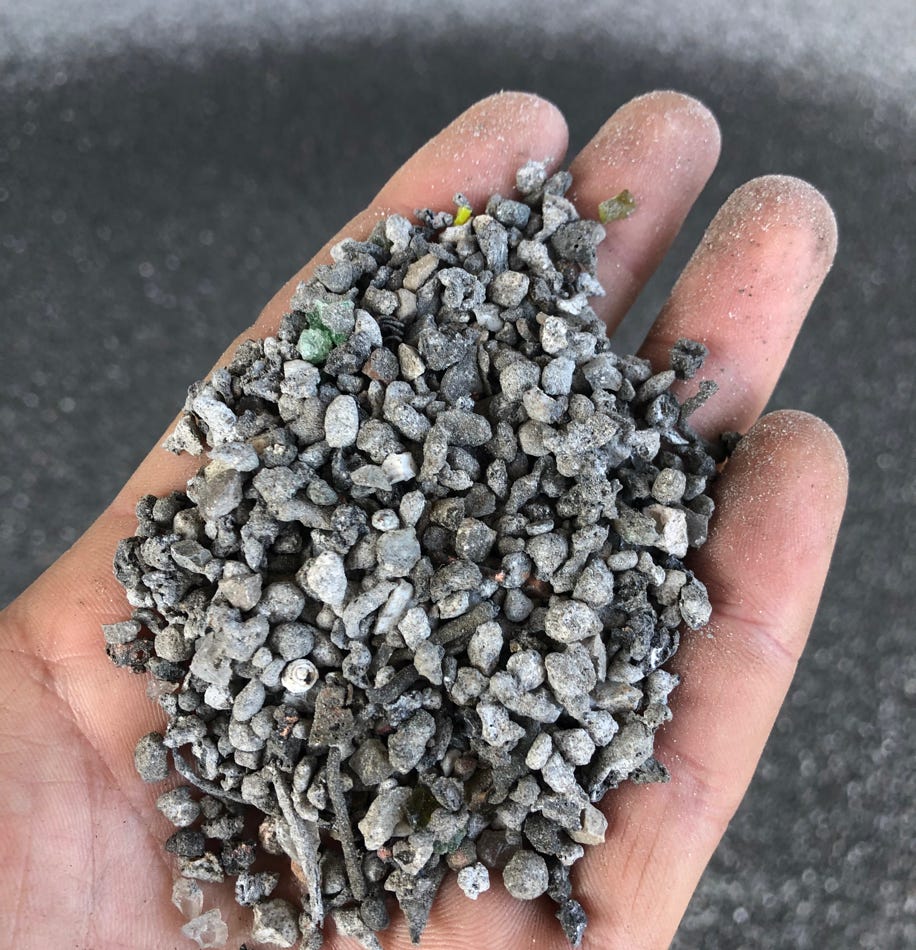

The result of the plant is that the metal is recovered maximum. It is often under 0,1% metals left in the bottom ash. This is a very nice result. It is due to the crushing, liberation and cleaning of the metals. The material is metal rich and contains a relative high amount of precious metals.

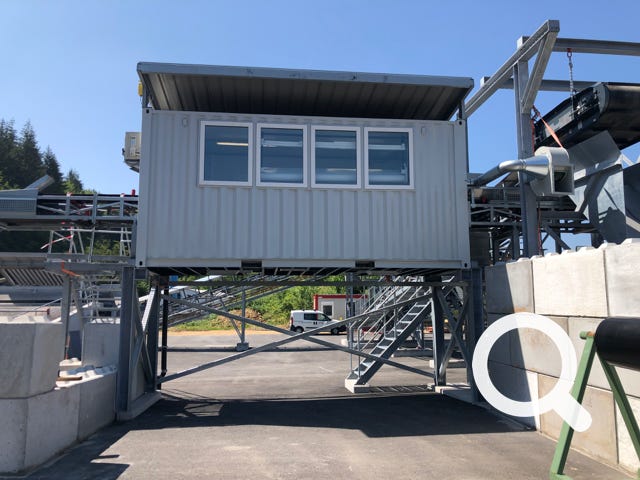

trs aib deponie elbisgraben 12
trs aib deponie elbisgraben 14

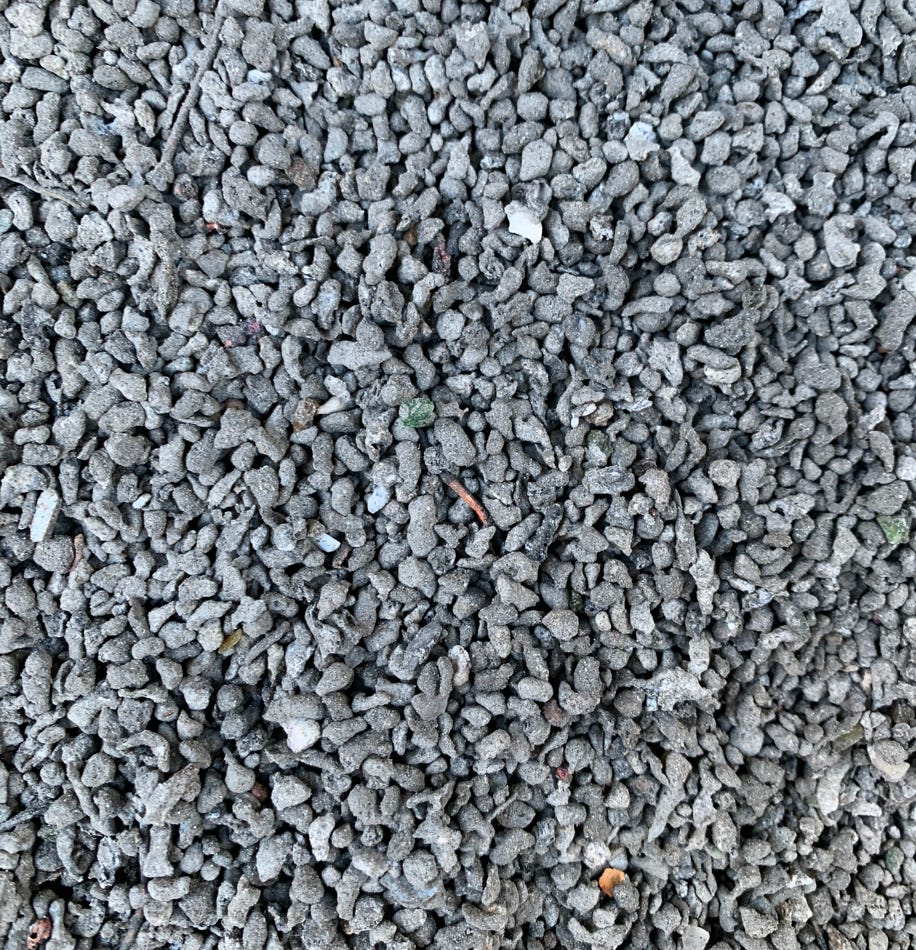

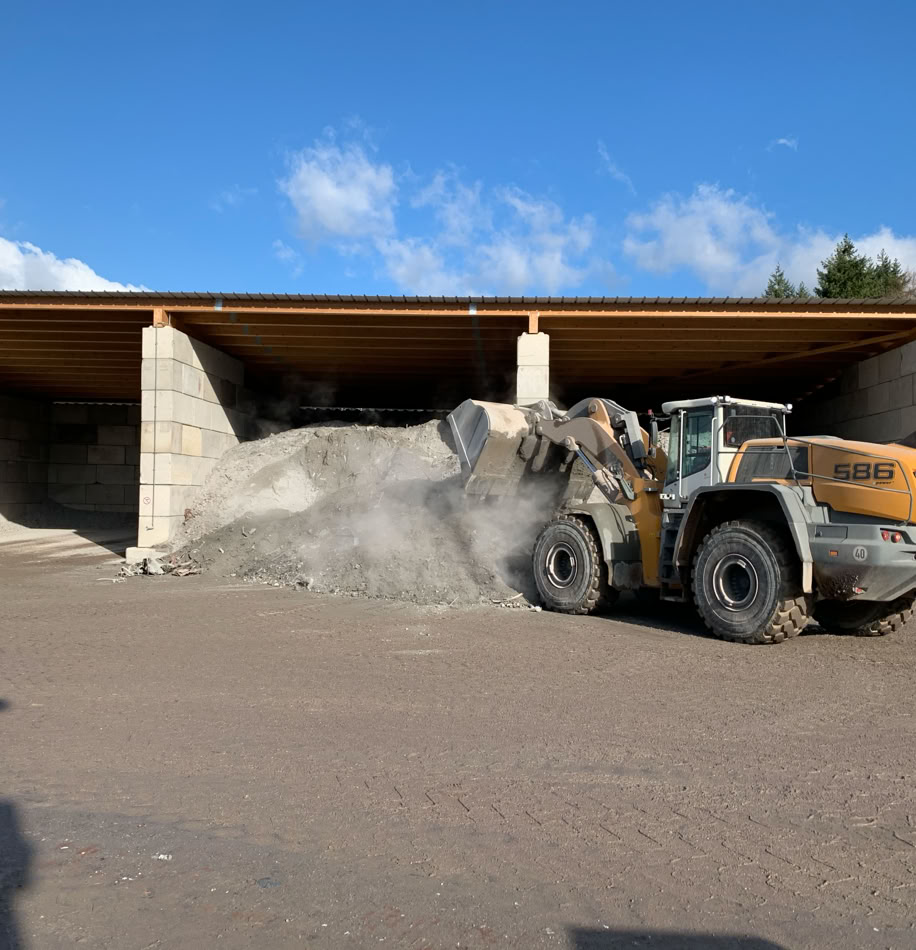

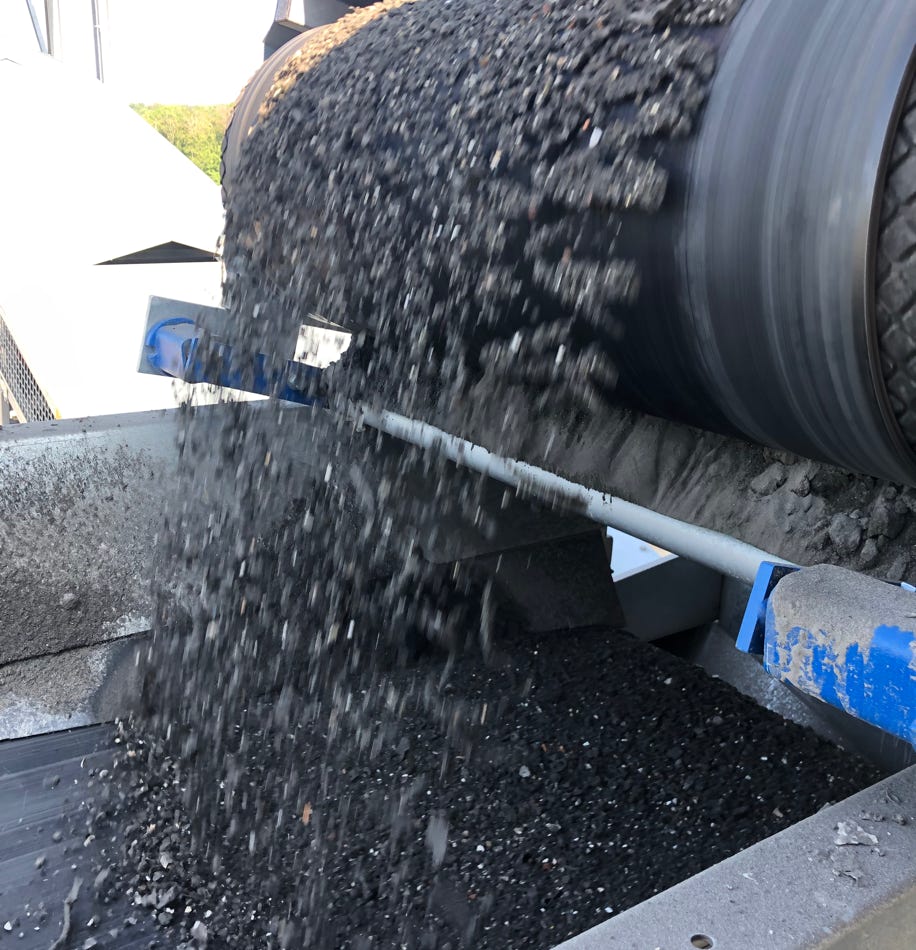

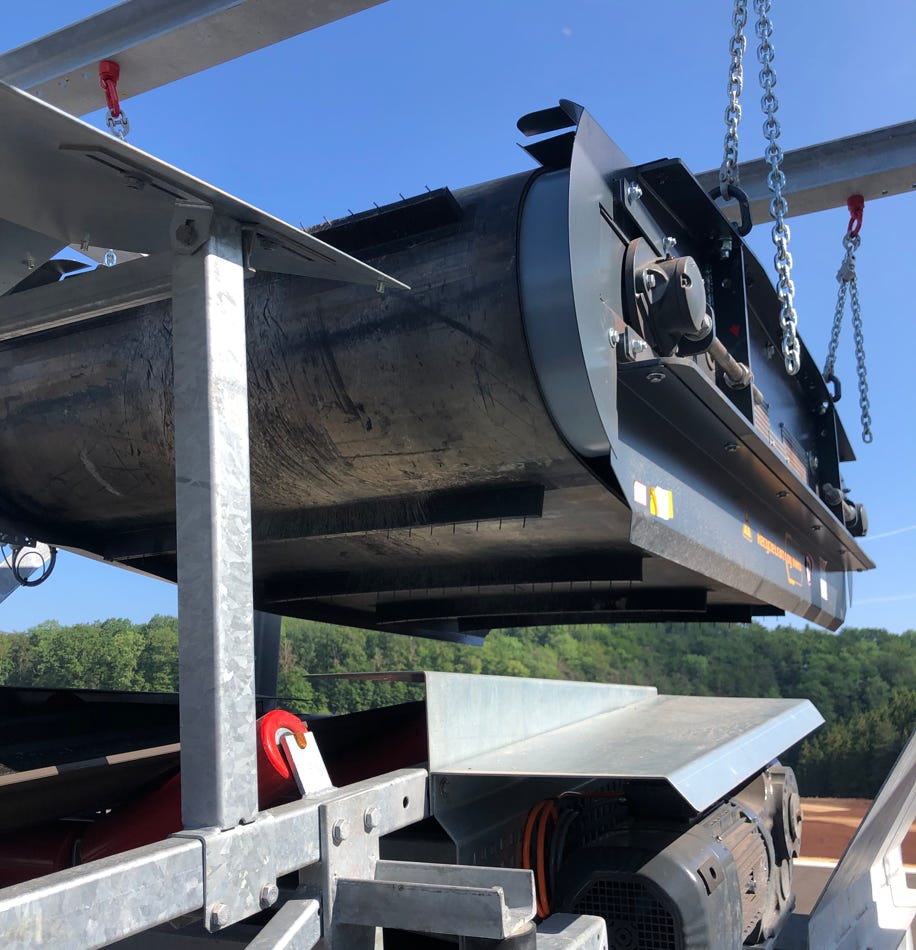

TRS - Fixed Recycle Plant

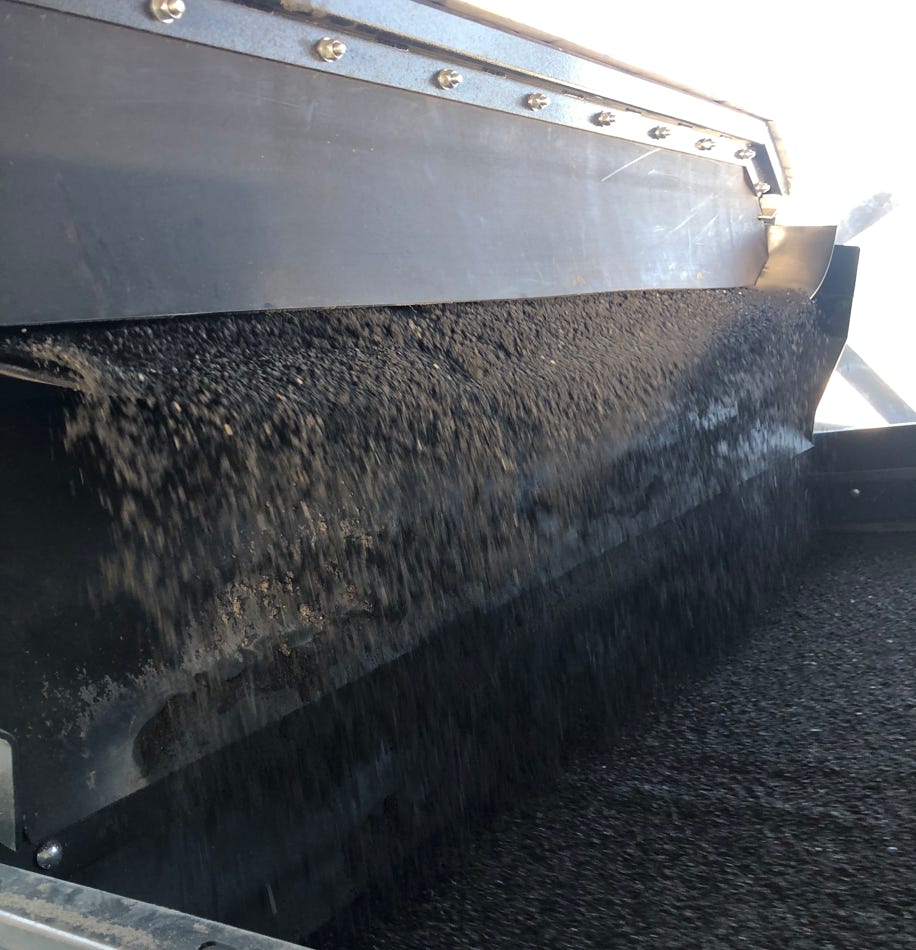

TRS - Fixed Recycle Plant

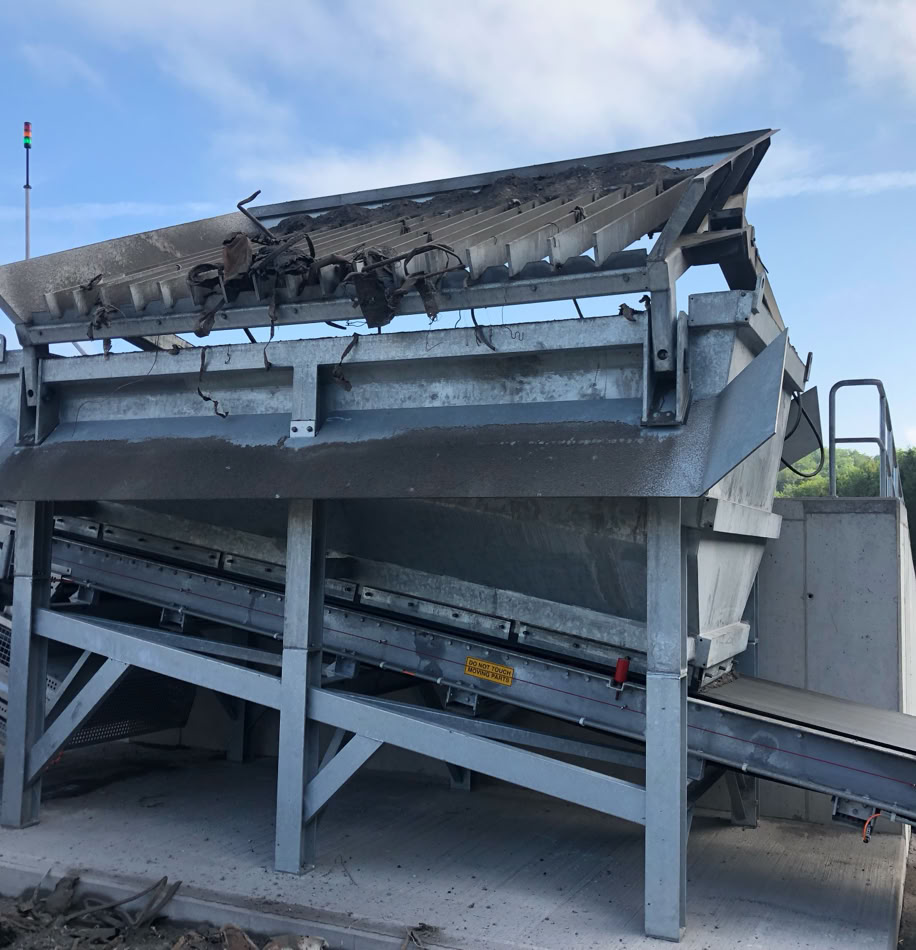

TRS - Fixed Recycle Plant
TRS - Fixed Recycle Plant
TRS - Fixed Recycle Plant
TRS - Fixed Recycle Plant
TRS - Fixed Recycle Plant
TRS - Fixed Recycle Plant

Capacity:

Material size:


30-35 tons per hour input

± 0-500mm input

± 0-5mm output

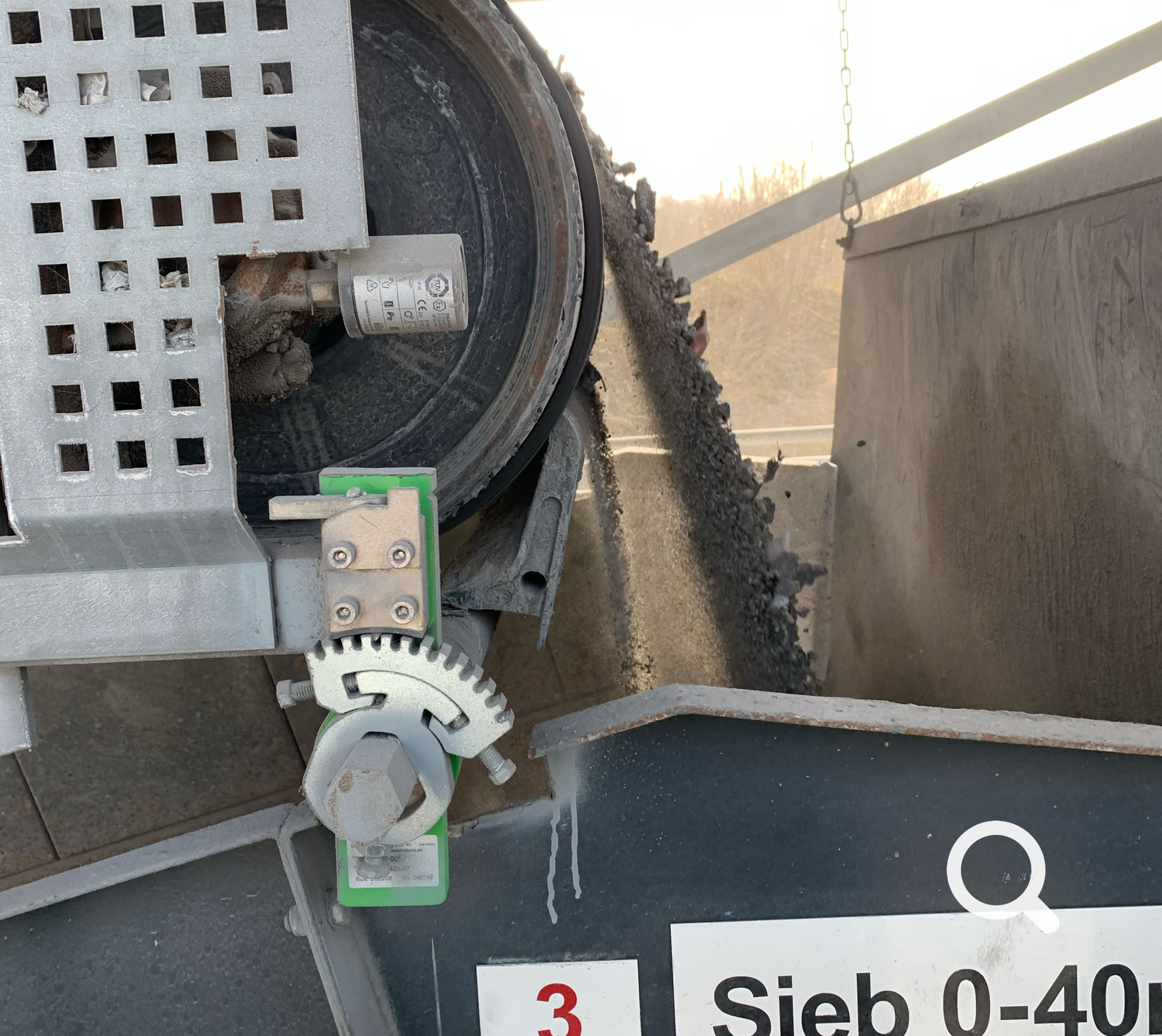

trs aib deponie elbisgraben 11

Main equipment that was used:

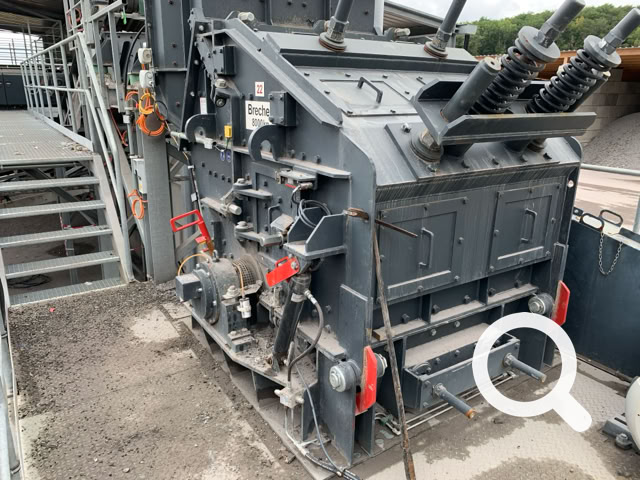

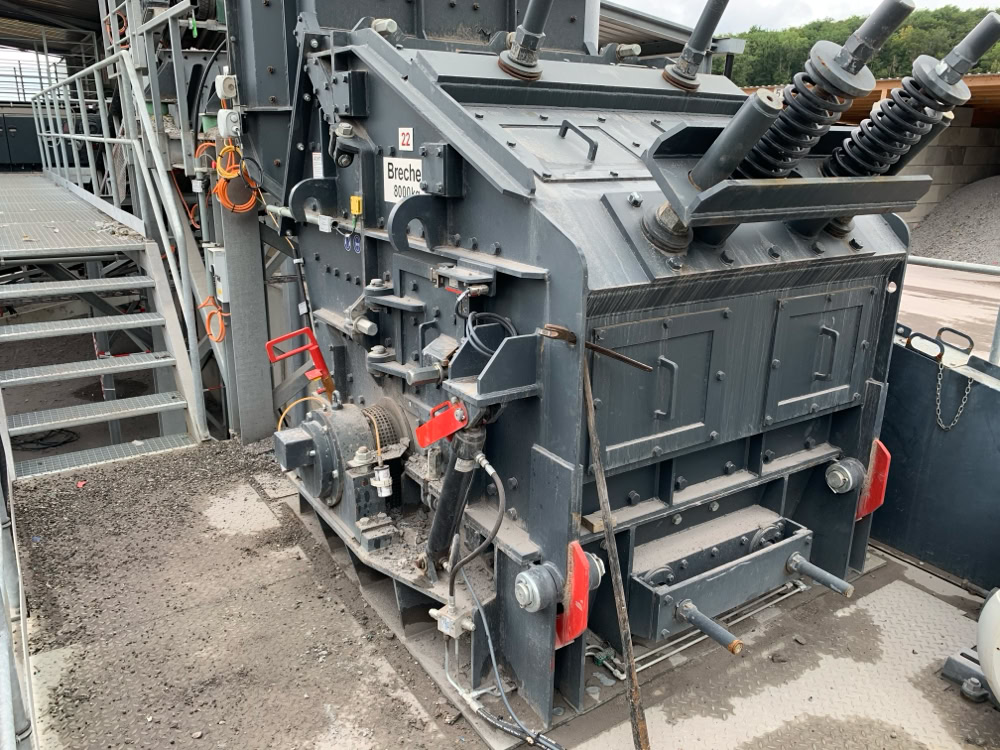

Crusher:

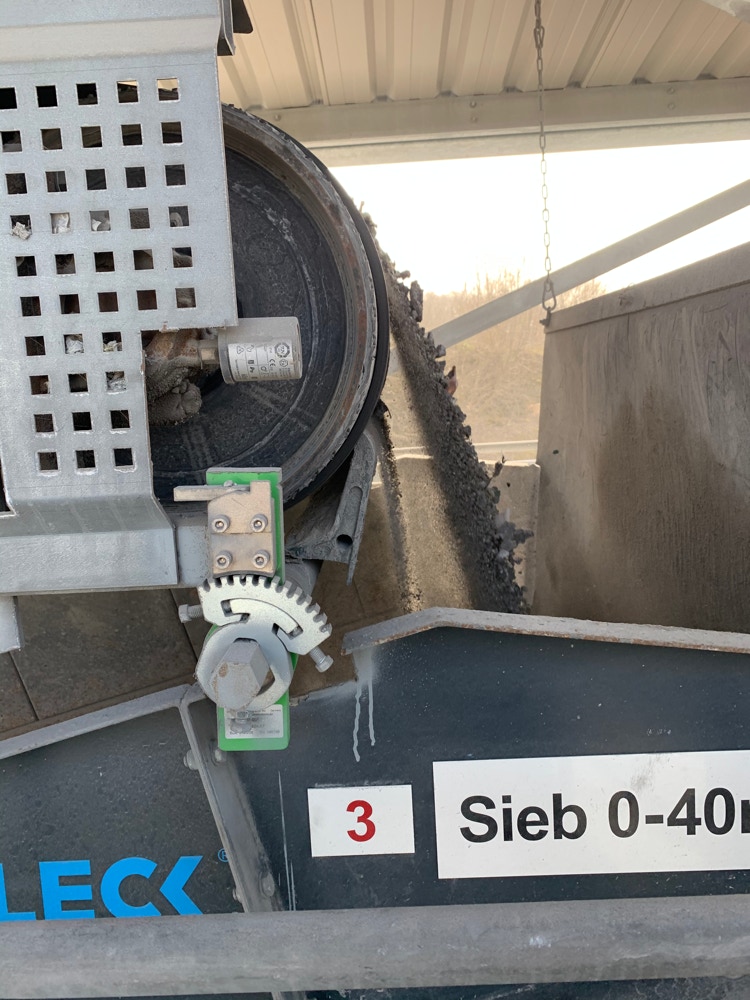

Sieves:

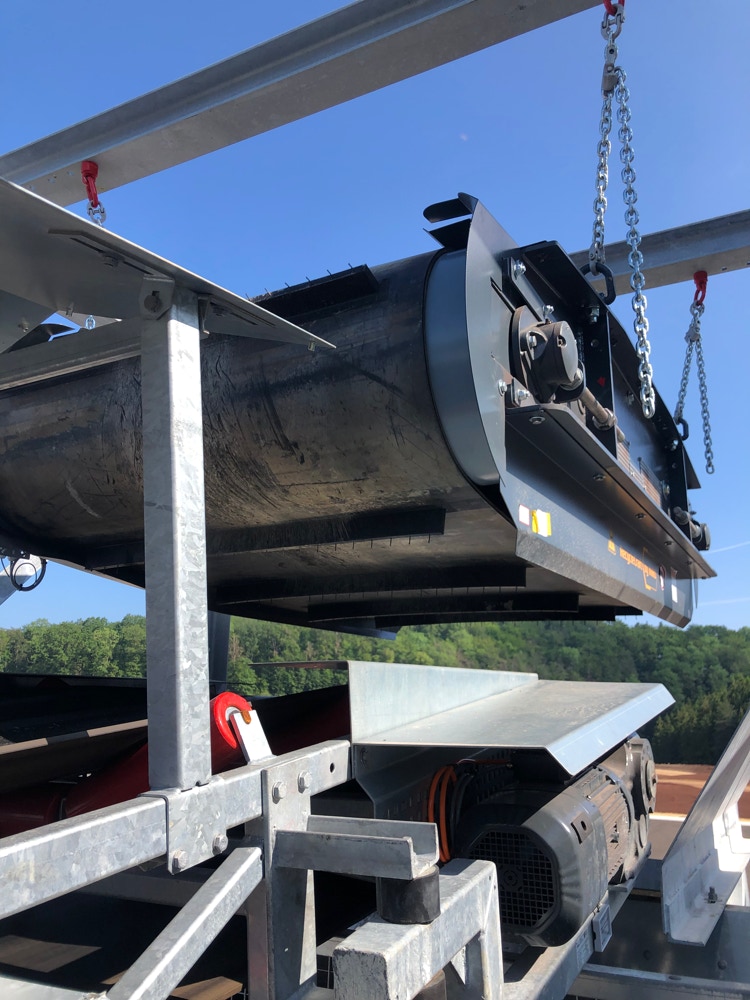

Magnets:

Eddy Currents:

Conveyors:

Bunker:

Steelworks:

Roofing:

Prall-Tec GmbH

SPALECK GmbH

IMRO Maschinenbau GmbH

IMRO Maschinenbau GmbH

TRS BV

TRS BV

TRS BV

TRS BV
